5000L Seawater Desalination Equipment Water Purifier Machine Reverse Osmosis Systems

Brand Name : Chunke

Model Number : CK-RO

Certification : CE,ISO

Place of Origin : China

MOQ : 1 unit

Payment Terms : Cash,PayPal, T/T, L/C, Western Union

Supply Ability : 1000 unit per month

Delivery Time : 7-10 days

Item : 5000L Seawater Desalination Equipment Water purifier machine reverse osmosis systems

Structure : Filtering machine

Voltage : 220V / 380V

Pump : CNP\Ling Xiao\

Recovery rate : ≥50%-60%

Organic removal rate : ≥98%

Capacity : 3000L per hour

Material : SUS 304 or SUS 306

Contact Now

5000L Seawater Desalination Equipment Water purifier machine reverse osmosis systems

Typical RO Processing:


Feed water pump- Sand filter--Active carbon filter -Softener -Cartridge filter- High-pressure pump- RO system
1. Feed water pump: provide the pressure to sand filter /active carbon filter/ softener
2. Sand filter: Get rid of turbidity, suspended solids, organic impurities and colloid etc.
3. Active Carbon filter: Remove the color, free chloride, organic matter and harmful matter etc.
4, Softener; Get rid of calcium, magnesium and bicarbonate ions in original / source water, reduce water hardness.
5. Cartridge filter: prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6. High pressure pump: Provide the high pressure to RO membrane (at least 2.0 Mpa).
7. RO system: main part of pure water treatment plant. The desaltation rate up to 99%, capable of removing over 99% of ions, bacterias, particles and organics.

PRODUCT SPECIFICATIONS
Model
500LPH
two stages
1000LPH
two satages
2000LPH
two stages
3000LPH
two stages
4000LPH
two stages
5000LPH
two stages
Flow of produced water
0.3-0.7
(m/h)
0.5-1.2
(m/h)
1.7-2.2
(m/h)
2.8-3.2
(m/h)
3.8-4.2
(m/h)
4.5-5.2
(m/h)
Flow of concentrated water
0.10-0.2
(m/h)
0.10-0.3
(m/h)
0.2-0.4
(m/h)
0.3-0.5
(m/h)
0.4-0.6
(m/h)
0.4-0.6
(m/h)
Maximum working Pressure
0.4(MPa)
0.4(MPa)
0.4(MPa)
0.4(MPa)
0.4(MPa)
0.4(MPa)
Pressure difference between inlet and outlet
0.1-0.25
(MPa)
0.1-0.25
(MPa)
0.1-0.25
(MPa)
0.1-0.25
(MPa)
0.1-0.25
(MPa)
0.1-0.25
(MPa)
pressure of concentrated water
(Mpa)
0.05-0.1
0.05-0.1
0.05-0.1
0.05-0.1
0.05-0.1
0.05-0.1
Maximum current(A)
3.5
3.5
3.5
3.5
3.5
3.5
Maximum Voltage(V)
200
340
340
340
340
340
Rate of Recovery
70-75%
75-80%
90-95%
90-95%
90-95%
90-95%
Working Temperature(C)
5-25
5-25
5-25
5-25
5-25
5-25

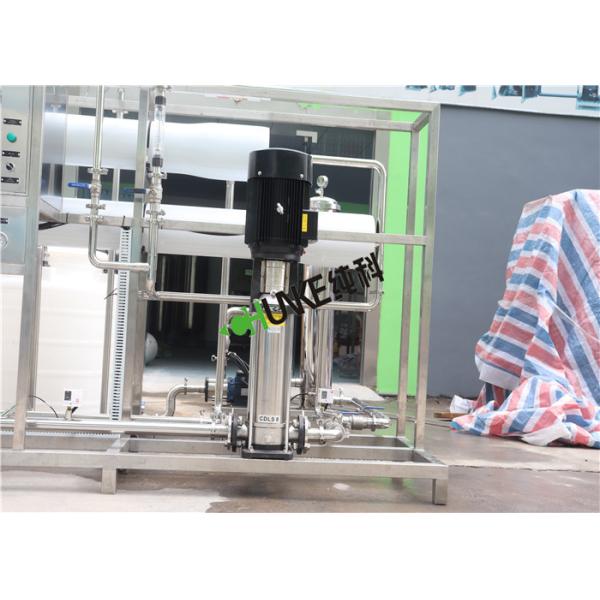

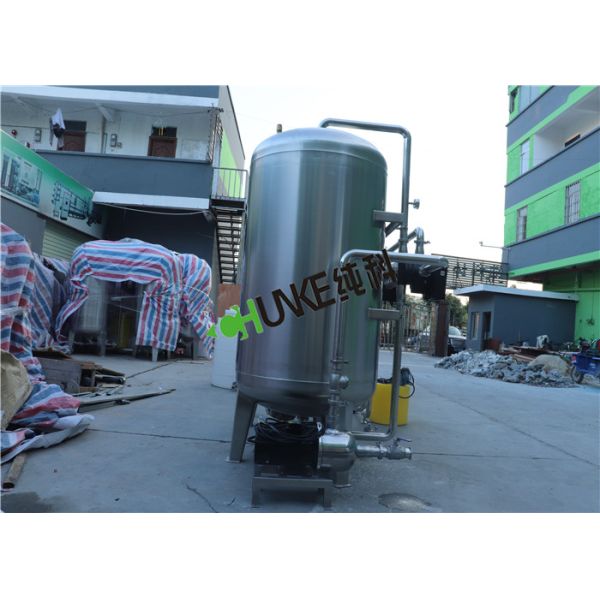

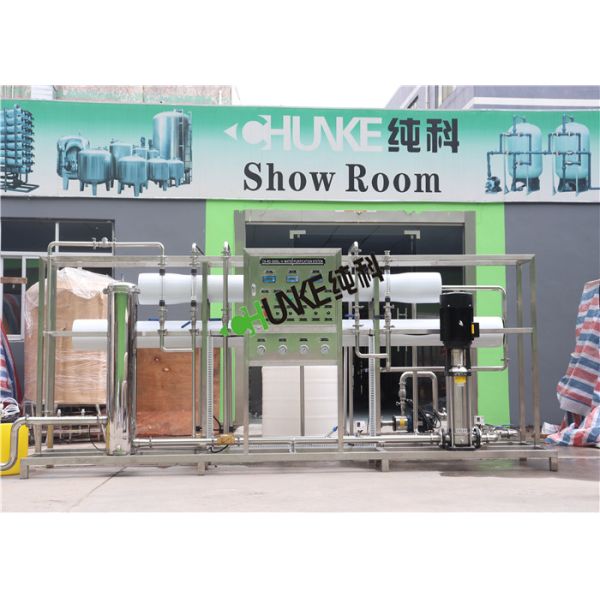

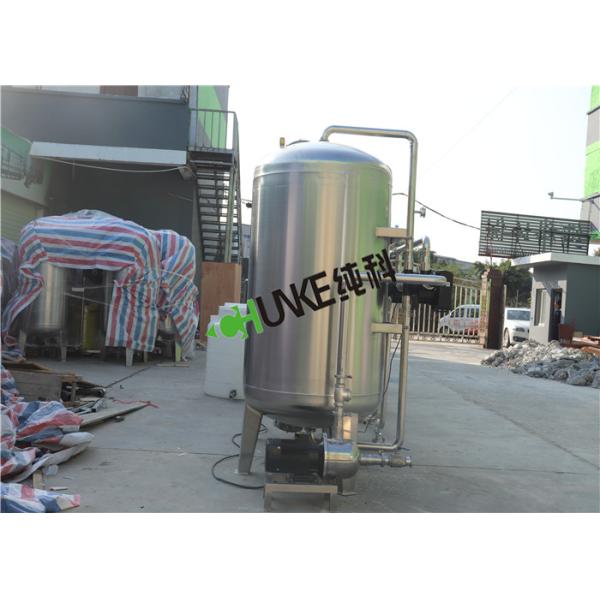

Detail Pictures :
5000L Seawater Desalination Equipment Water Purifier Machine Reverse Osmosis Systems5000L Seawater Desalination Equipment Water Purifier Machine Reverse Osmosis Systems5000L Seawater Desalination Equipment Water Purifier Machine Reverse Osmosis Systems
